CAUTERY 400 matrix



Digital Models

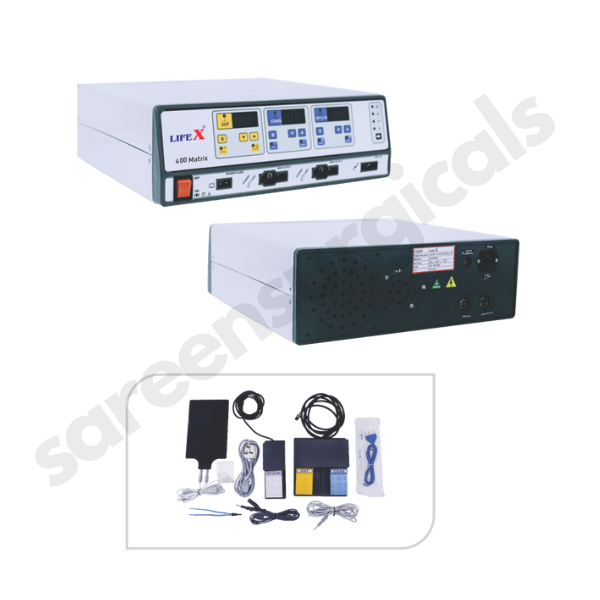

The SAREEN 400 MATRIX is a 400 watt high power, operating room generator/Electrosurgical Unit. The unit consists tissue impedance monitoring system, self adjustment of power output to reduce the continuous power setting for different tissue needs, to provide user consistent performance with all digital display of power and modes. The system delivers 9 manopolar and bipolar RF energy modalities to provide a high level of surgical precision. Engineered with the safety of the patient in mind.


Special Features
  • A tissue sensing technology used for all applications to deliver user consistent performance.
  • Reduces the frequent adjustment of power setting as the tissue charges
  • Reduces the risk of collateral tissue damage due to sparkles and charming free power.
  • Minimizes the patient recovery time by performing precise and clean cutting and coaglation.
  • *Minimum RF distortion in other D.T. Equipment
  • Patient plate fault monitoring system.
  • Auto monitoring facility, displays different error codes if any error occurs during use.
  • Randomized form of spray mode.
  • Two independent power activation of monopolar output, hand switch operation and foot switch operation.
  • Separate bipolar generator with foot switch operation or hand (auto) operation eliminates the need of foot switch while using auto mode



Technical Data

MONOPOLAR CUT WATT (W) RESISTANCE (Ohm) CREST FACTOR
Pure 400 W 500 Ohm 1.5
Blend 350 W 500 Ohm Variable
MONOPOLAR COAG
Soft 200 W 500 Ohm
Force 175 W 500 Ohm
BIPOLAR
Bi-cut 150 W 100 Ohm 1.5
Micro 100 W 300 Ohm Variable



Input 220/240 VAC/50hz
Power Consumption 750VA Маx.
Protection Class l
MDD llB
Input Fuse 6amp.
Output Control TFT Touch Screen LCD
Nominal Frequency MDD360khz



Max Output Power 400 W
Basic Construction IEC-60601-1, IEC-60601-1-2
Dimensions 300mm X 130mm X 340mm
Ambient (LXHXW)
Temperature 30-40 Degree Celsius
Weight 6.5kg
