CAUTERY VSESU-S8
Digital Models

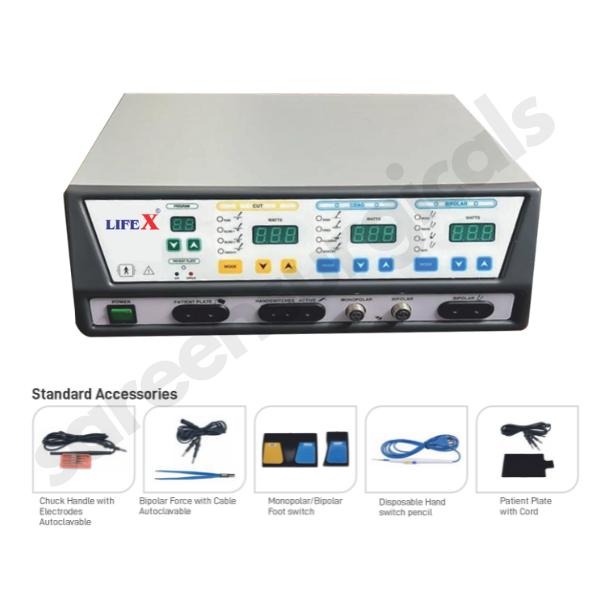

Electro Surgical Generator is the most versatile Electro Surgical Generator. It offers features and performance, never before available in a single generator. This Elektra has spray and coagulation which rivals the best spark gap generators and with minimum cutting effect. The blend gives a good Hemostasis effect than cutting and pure cut is exceptionally smooth and starts promptly even in imigated procedures. The isolsted bipolar output, which has a non-sparking characteristic is ideal for microsurgery, Neuro Surgery, Laproscopy and other applications. ELKS six meets the surgeonzs need in the wide range of general procedures and in specialties including Gynecology, Urology, Neurology, Thorasic. Plastic and Reconstructive Surgery
Salient Features
99 User set table program mode
| Frequency | 480khz |
| Display | 7 segment LED |
| Net Weight (Inc Accessories) | 8.5 Kg |
| Dimension | 410 mm (L) X 355 mm (W) X 155 mm (H) |
| Input Supply Voltage | 110V 230 VAC (+/-15%) 50 Hz |
Separates Monopolar & Bipolar foot switches
Safety Features
- Protection Class According to EN 60601-1
- Body Protected and cardiac protected design.
- HF Leakage current <150mA
- Patient Plate Monitoring System
Technical Specification CUT
| MODE | MAX POWER | LOAD | CREAST FACTOR |
| Pure Cut | 400 W | 300 Ω | 1.5 |
| Blend 1 | 250 W | 300 Ω | 1.5 |
| Blend 2 | 200 W | 300 Ω | 1.5 |
| Endocut | 99% | 300 Ω | 1.5 |
COAG
| MODE | MAX POWER | LOAD | CREAST FACTOR |
| Spray | 120 W | 300 Ω | 7 |
| Force | 120 W | 300 Ω | 6.5 |
| Fulgurate | 150 W | 300 Ω | 6 |
| Desiccate | 150 W | 300 Ω | 6 |
BIPOLAR
| MODE | MAX POWER | LOAD | CREAST FACTOR |
| Micro | 80 W | 100 Ω | 1.5 |
| Macro | 80 W | 100 Ω | 1.5 |
| Cut | 100 W | 100 Ω | 1.5 |
| Auto | 100 W | 100 Ω | 1.5 |
