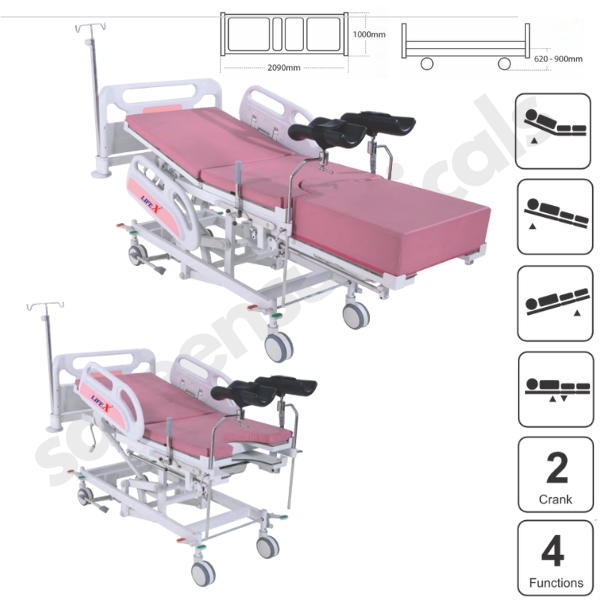

SSP H7 LABOUR DELIVERY ROOM BED (HYDRAULIC)

Model: SSP H7

Description:

  • Foot operated Hydraulic System mechanism by stepping on the pedal located on either side of the table for Hi-Low adjustment.
  • Backrest, Trendelenburg & Reverse Trendelenburg position Obtained
  • by Smooth Crank System with S.S. Foldable Handle behindhead end.
  • Heavy PP Head Panel with metal inserts along with lock and corner buffer.
  • PP Moulded two Pieces individual Side Rails.
  • Tubular framework mounted on 125mm (5") Central locking castors.
  • Three-section top made of Bakelite sheet covered with Removable suitable Mattress.
  • Leg end section can slide under the main section.
  • Height adjustable a pair of foam padded knee crutches.
  • S.S Telescopic I.V. Rod with 4 hooks
  • Detachable S.S. Tray
  • Provided with adjustable S.S. Grip Handles on both sides.
  • Finish: Pretreated and epoxy powder coated


Dimensions:

Overall Dimension (LxW) - 2090x1000mm
Mattress Platform (LxW) - 1900x660mm
Backrest - 75°
Trendelenburg - 10°
Reverse Trendelenburg - 11°
Height 620mm - 870mm
Safe working Load - 165kgs
Patient Weight bearing capacity - 140kgs
Castors - 125mm Central
