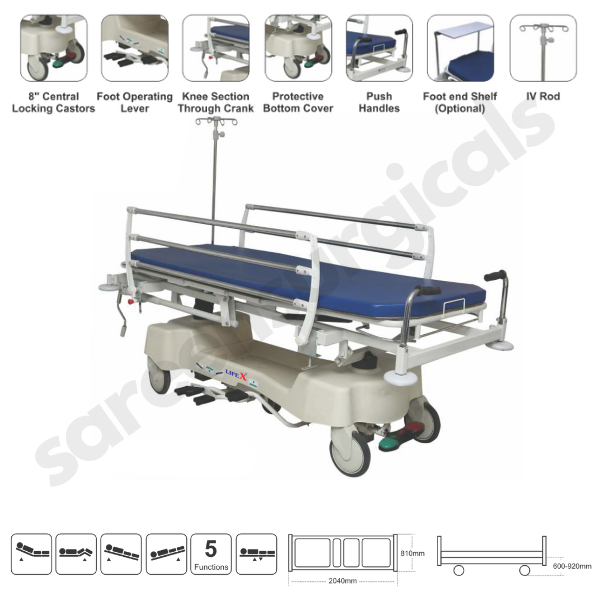

SSP E8 EMERGENCY STRETCHER TROLLEY (HYDRAULIC)

Model: SSP E8

Description:

• Foot operated Hydraulic System mechanism by stepping on the pedal located on both sides of stretcher for Hi-Low,
• Trendelenburg & Reverse Trendelenburg adjustments.
• Smooth Pneumatic mechanism to raise Backrest.
• Kneerest position Obtained by Smooth Crank System with S.S. Foldable Handle at foot end.
• Four section X-Ray permeable Platform Top along with Suitable Mattress of 100 mm (4").
• Two Pieces Individual Detachable Collapsible Safety Side-Rails with safety lock, Stainless Steel Pipe
• Provided with Push/Driving Handle on the head end for smoothing the way of movement conveniently and can be stored while not in use.
• Tubular M.S. Framework mounted on 200 mm (8") Central Locking Castors Bottom Cover with Storage bin. Corner buffer provided at 4 locations.
• Urine bag holder provided at both sides.
• S.S. Telescopic I.V. Rod with 4 Hook's(SSP-5002) & provision on all 4 sides

Dimensions (Approx) :

• Overall Size: 2040L X 81 OW x 600-920H mm
• Stretcher Top Size: 1930L X 735W
• Angle of Back Section: 90° Angle of Leg Section: 25°
• Angle of Trendelenburg/ Reverse Trendelenburg: 12°/10C

Optional Accessories :

• Fifth Wheel
• Oxygen Cylinder Holder Foot end Shelf
