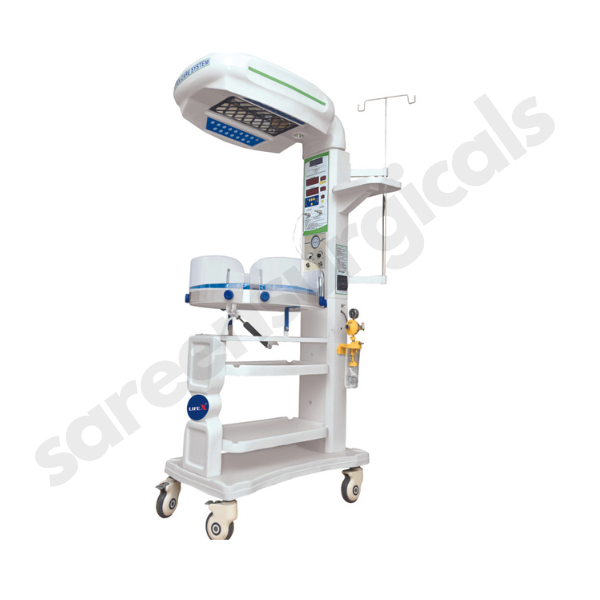

OPEN CARE SYSTEM (MODEL: SSP IRW OCS 301)

Model: SSP IRW 301

Range of SSP IRW OCS 301 open care system that comes in fiber and powder coated MS allow you to efficiently care and provide advance warming capabilities while using one touch operations to simplify procedures. Advance microprocessor controlled system with self-check on the electronic circuitry skin/air/manual control latest technology packed with higher accuracy & enhanced visibility has been integrated in the system

Control Panel :

The SSP IRW DCS 301 open care system comes with automatic manual and baby (servo) modes. Big separate display for both skin and air temperature display can be converted from "C to 'F by the push of a button. A big LCD is provided. For more information and visualizations of the heater power in manual and servo modes A full panel of alarms provides safety and convenience, with both audible and visual indicators in the eventof:

High Temp/Low Temp.

Power Faiture

System Fail

Tamer

On Probe Failure

Heater tad/On Optional) on, visual alarm provided

(Optional) only visual ularm provided

Heater Assembly. :

The heater assembly located above the center of the support structure consists of an integrat examination light and a 650 watts heating system (Silica/Quartz/Ceramic Heater/for quick warming and even distribution of heat on the baby bed The heater can be swiveled in either direction for taking, X-ray and doing procedums. The Heater is also equipped with LED Phototherapy on both side to provide light intensity effective on the baby bed.

Air Mode (Optional) :

The system comes with air sensor. This is added security cover with exclusive feature of switching off the heater in case the AIR temperature goes above 39°C, irrespective of what the skin temperature isat the time of event.

Additional Features :

If needed the unit can be programmed try the user itselt for any of the following features (al Count up/down Timer (b) Check baby Alarm, (Optional) (C) Pre warming mode.

Manual Mode :

The system automatically starts heating from 40% in manual mode and the same can be changed through settings up to 100% The system automatically converts from servo mode to manual mode in case of probe failure thus providing nonstop working of the unit.

Baby Bed :

The spacious boby bed incorporates easy drop down/fold down glasses for Maximum access to the patient Optional: X-Ray facility is provided below the baby bed for taking X-ray of the baby without disturbing. LED Phototherapy SSP IRW OCS 301 comes with choice of highly efficient and bright 12/15 choice of LEDs on each side of the heater. The strong lux of 24/30 LED's cure jaundice in baby rapidly.

Infant Resuscitator :

• The range how adjustment is 5LPM9, 15LPM
• The MAX-Pand PIP are safe, controlled and accurate
• The PEEP is constant and accurate. Simple operation and flexible application.

Technical Specification:

Light Source, High Bright Blue Whit LEDs

Inbuilt Printer:

Manual printer fitted in the unit gives you real time printout of the event when required by pressing the switch on the control unit

Optional:

Resuscitator, suction, oxygen
